Molded / Welded Silicone Gaskets

Mould joined o-rings to measure - inflatable seals on request. In Merefsa we have specialised in inflatable seals made to measure, rubber seals, vulcanised o-rings, seals of any diameter,frames for vacuum applications and ovens, etc.. Contact us for

Juntas Moldeadas

Product Information


Our manufacturing process for compression moulding and hot vulcanising allows us to supply any type of shape given a drawing or sample in small, medium or large series, with or without textile, metallic reinforcement, or two-component. Vulcanised parts are later post-cured in a hot air oven with forced ventilation.

We have our own mould, die and tool manufacturing section, equipped with EDM, mill, CNC, digital control lathes, which allows us to offer a dynamic service and short delivery times and very competitive pricing.

Junta sde Caucho Moldeadas

Fabrication


By hot vulcanisation and moulding we manufacture round closed seals (one joint) for autoclaves or ovens, rectangular silicone frames (four joints), seals made to measure as well as inflatable seals and vacuum seals with silicone or metal 'T' type junction for air intake or suction.

Our qualified personnel can manufacture and cut any type of seal, cylindrical or conical sleeve and dispose of the adequate machinery for vulcanisation of joints according to customer's specifications.


Standards


Our standard quality is compact silicone 60 Shore A in translucent colour, although we can manufacture from 20 to 90 Shore A in any basic colour and any RAL to measure with a minimum quantity of 25 Kg, as well as luminescent, fluorescent or metallic colours.

We manufacture parts in any of the following qualities:


  • Standard insulating silicone (MVQ)
  • Conductive silicone
  • Vapour resistant silicone
  • Fluoro silicone (FVMQ)
  • Very high temperature silicone (THT)
  • Very low temperature silicone (PMVQ)
  • Platinum-cured silicone
  • Foodstuff contact approved silicone FDA
  • BgVV (recommendation XV)
  • Medical-grade silicone with USP class VI
  • Standard sponge silicon for high temperature resistant
  • Foodstuff contact approved sponge silicone

Imágenes


Juntas de silicona moldeadas / soldadas

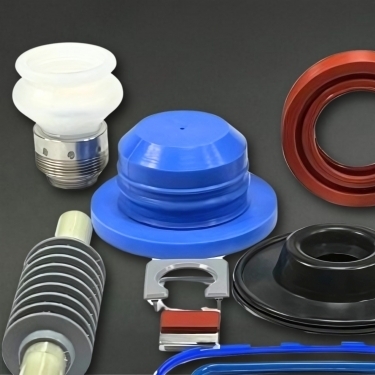

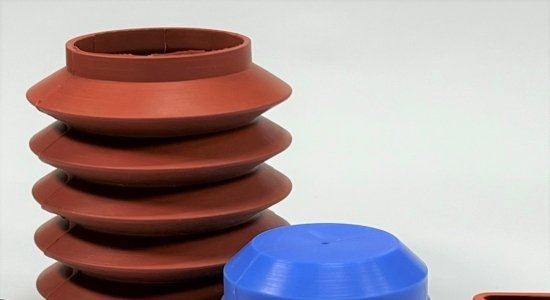

Moulded and vulcanised Joints
Juntas de Silicona Moldeadas / Soldadas
Moulded and vulcanised Joints
Juntas de Silicona Moldeadas / Soldadas
Moulded and vulcanised Joints
Juntas de Silicona Moldeadas / Soldadas
Moulded and vulcanised Joints
Juntas de Silicona Moldeadas / Soldadas
Moulded and vulcanised Joints
