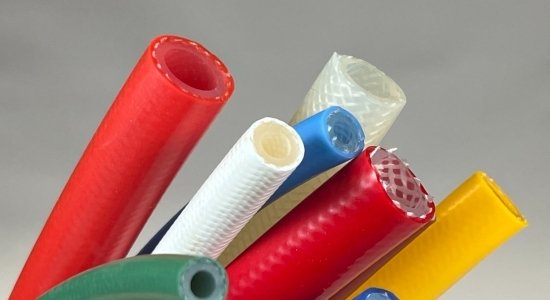

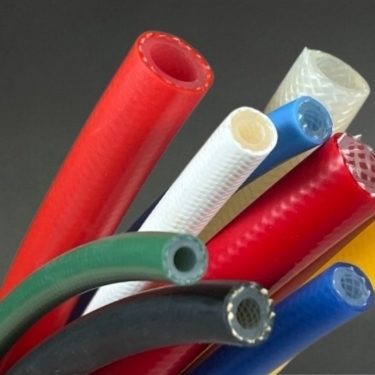

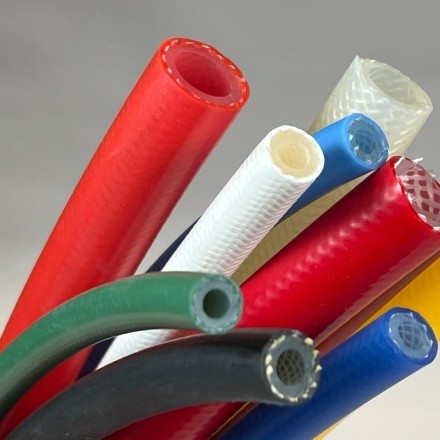

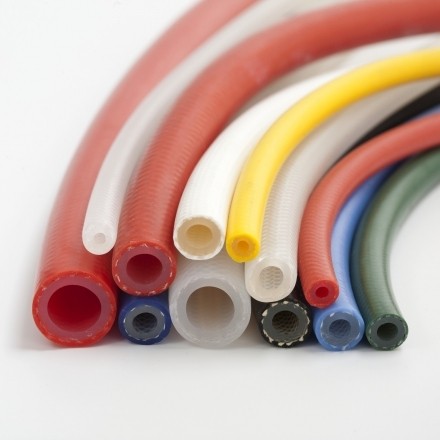

Reinforced Silicone Tubing Platinum. In Merefsa we are manufacturers of reinforced silicone hoses, platinum tubing and silicone rubber hose. Reinforcements can be glass fibre, polyester or nomex.
Product Information
Silicone reinforced tubing is the step prior to the use of silicone hose reinforced with stainless steel braid. Although the pressure resistance is lower, these silicone reinforced hoses are more flexible, less heavy and cleaner to use, being able to make very small radii of curvature without blinding, in addition to having a more affordable price.
Product characteristics:
- Working Temperature Range: -70 ºC a +160 ºC.
- Hardness: 70 +/- 5 º Shore A.
- Wall Thickness Tolerance: +/- 0.3 mm.
- Smooth non-stick interior.
- Inert and biologically neutral piping.
- Can be sterilized, leaves no smell or taste.
- Very small radius of curvature.
- Possibility of delivery with screwed ends.
Types of Silicone Reinforced Tubing
We can supply inner platinum silicone reinforced pipe, with polyester (from Ø3 mm to Ø15 mm) or with fibreglass insert (from Ø16 mm) and coated on the outside with transparent, red, blue or black silicone with high mechanical resistance or platinum silicone. This silicone reinforced hose complies with FDA regulation CFR21 section 177.2600, for food contact and medical grade. Especially useful for those processes sterilizable by the anti-adherence of silicone and its high resistance to wet temperature.
For quantities greater than 200m, we can supply silicone reinforced tubing in any custom colour and the possibility of aramid reinforcement.
Applications
Really the reinforced silicone hose is the definitive product in those facilities where we work with sticky fluids, sterilizable processes, steam, pressure, vacuum, inaccessible places, etc., and the possibility of being able to have external colors allows also to recognize the reinforced silicone pipe in the different applications inside the same factory.
Online Stock Table
Reference | Ø Int. (mm) | Ø Ext. (mm) | Wall(mm) | Color | Pressure (Kg/cm²) | Rol length (m) | (€/m) | Online Stock (m) |
---|---|---|---|---|---|---|---|---|
TRSNTFV03000250 | Ø3,0 | Ø8,0 | 2,50 | Translucent | 7 | 50 | ||
TRSNTFV05000250 | Ø5,0 | Ø10,0 | 2,50 | Translucent | 7 | 50 | ||
TRSNTFV06000295 | Ø6,0 | Ø11,9 | 2,95 | Translucent | 7 | 50 | ||
TRSNTFV08000320 | Ø8,0 | Ø14,4 | 3,20 | Translucent | 7 | 50 | ||
TRSNTFV09500320 | Ø9,5 | Ø15,9 | 3,20 | Translucent | 8 | 50 | ||
TRSNTFV12000350 | Ø12,0 | Ø19,0 | 3,50 | Translucent | 7 | 50 | ||
TRSNTFV15000450 | Ø15,0 | Ø24,0 | 4,50 | Translucent | 7 | 50 | ||
TRSNTFV19000580 | Ø19,0 | Ø30,6 | 5,80 | Translucent | 8 | 50 | ||
TRSNTFV25000600 | Ø25,0 | Ø37,0 | 6,00 | Translucent | 8 | 50 | ||
TRSNTFV32000700 | Ø32,0 | Ø46,0 | 7,00 | Translucent | 8 | 10 | ||
TRSNTFV38000700 | Ø38,0 | Ø52,0 | 7,00 | Translucent | 6 | 10 |
Reference | Ø Int. (mm) | Ø Ext. (mm) | Wall(mm) | Color | Pressure (Kg/cm²) | Rol length (m) | (€/m) | Online Stock (m) |
---|---|---|---|---|---|---|---|---|
TRSNRFV03000250 | Ø3,0 | Ø8,0 | 2,50 | Red | 7 | TRSNRFV06000295 | Ø6,0 | Ø11,9 | 2,95 | Red | 7 | 50 |
TRSNRFV08000320 | Ø8,0 | Ø14,4 | 3,20 | Red | 7 | |||
TRSNRFV09500320 | Ø9,5 | Ø15,9 | 3,20 | Red | 8 | 50 | ||
TRSNRFV12000350 | Ø12,0 | Ø19,0 | 3,50 | Red | 7 | |||
TRSNRFV15000450 | Ø15,0 | Ø24,0 | 4,50 | Red | 7 | 50 | ||
TRSNRFV19000580 | Ø19,0 | Ø30,6 | 5,80 | Red | 8 | 50 | ||
TRSNRFV25000600 | Ø25,0 | Ø37,0 | 6,00 | Red | 8 | 25 |
Images
-
M. FIBERGLASS BRAID. PLATINUM SILICONE HOSE 70SH±5 TRANSP. SI-COATED RED Ø12MM X 3,5MM WALL ±0,3
| Stock: 50 U | P.V.P.: 1.071,00 € /50 U (VAT not included) | Term: 1/3 days | Ref. TRSPRFV12000350
SHOPStock: 50 U -
M. FIBERGLASS BRAID. SILICONE HOSE 70SH±5 TRANSPARENT SI-COATED TRANSPARENT Ø32MM X 7 MM WALL ±0,3
OFFERS 24 % | Stock: 20 M. | P.V.P.: 172,86 € /2 M. (VAT not included) Now 130,63€ /2 M. (VAT not included) | Term: 1/3 days | Ref. TRSNTFV32000700
SPECIAL OFFER! Last meters will be supplied in roll packs of different sizes: 2 M., 3,5 M., 6,5 M., 8 M.OFFERS 24 %Stock: 20 M. -
FIBERGLASS BRAID. PLATINUM SILICONE HOSE 70SH±5 TRANSP. SI-COATED RED Ø8MM X 3,20MM WALL ±0,3
| Stock: 100 U | P.V.P.: 737,40 € /50 U (VAT not included) | Term: 1/3 days | Ref. TRSPRFV08000320
SHOPStock: 100 U -
FIBERGLASS BRAID. PLATINUM SILICONE HOSE 70SH±5 TRANSP. SI-COATED RED Ø32MM X 7 MM WALL±0,3
| Stock: 50 U | P.V.P.: 2.765,75 € /25 U (VAT not included) | Term: 1/3 days | Ref. TRSPRFV32000700
SHOPStock: 50 U -
M. FIBERGLASS BRAID.PLATINUM SILICONE HOSE 70SH±5 TRANSP. SI-COATED RED Ø19MM X 5,8MM WALL ±0,3
| Stock: 50 U | P.V.P.: 1.326,75 € /25 U (VAT not included) | Term: 1/3 days | Ref. TRSPRFV19000580
SHOPStock: 50 U -
M. FIBERGLASS BRAID. SILICONE HOSE 70SH±5 TRANSP. SI-COATED TRANSPARENT Ø3MM X WALL 2,5MM ± 0,3
| Stock: 1750 U | P.V.P.: 355,00 € /50 U (VAT not included) | Term: 1/3 days | Ref. TRSNTFV03000250
SHOPStock: 1750 U -
M. FIBERGLASS BRAID. SILICONE HOSE 70SH±5 TRANSPARENT SI-COATED TRANSPARENT Ø5MM X 2,5MM WALL ±0,3
| Stock: 2400 U | P.V.P.: 415,00 € /50 U (VAT not included) | Term: 1/3 days | Ref. TRSNTFV05000250
SHOPStock: 2400 U -
FIBERGLASS BRAID. SILICONE HOSE 70SH±5 TRANSPARENT SI-COATED Ø6MM X 2,95MM WALL ±0,3
| Stock: 1050 U | P.V.P.: 458,50 € /50 U (VAT not included) | Term: 1/3 days | Ref. TRSNTFV06000295
SHOPStock: 1050 U -
M. FIBERGLASS BRAID. SILICONE HOSE 70SH±5 TRANSP. SI-COATED TRANSPARENT Ø8MM X 3,20MM WALL ±0,3
| Stock: 2250 U | P.V.P.: 543,00 € /50 U (VAT not included) | Term: 1/3 days | Ref. TRSNTFV08000320
SHOPStock: 2250 U -
M. FIBERGLASS BRAID. SILICONE HOSE 70SH±5 TRANSP. SI-COATED TRANSPARENT Ø9,5MM X 3,20MM WALL ±0,3
| Stock: 200 U | P.V.P.: 655,00 € /50 U (VAT not included) | Term: 1/3 days | Ref. TRSNTFV09500320
SHOPStock: 200 U -
M. FIBERGLASS BRAID. SILICONE HOSE 70SH±5 TRANSPARENT SI-COATED RED Ø3MM X 2,5MM WALL ±0,3
| Stock: 1250 U | P.V.P.: 355,00 € /50 U (VAT not included) | Term: 1/3 days | Ref. TRSNRFV03000250
SHOPStock: 1250 U -
M. FIBERGLASS BRAID. SILICONE HOSE 70SH±5 TRANSP. SI-COATED RED Ø6 MM X 2.95 MM WALL ±0,3
| Stock: 250 U | P.V.P.: 470,47 € /50 U (VAT not included) | Term: 1/3 days | Ref. TRSNRFV06000295
SHOPStock: 250 U -
M. FIBERGLASS BRAID. SILICONE HOSE 70SH±5 TRANSP. SI-COATED TRANSPARENT Ø12MM X 3,5MM WALL ±0,3
| Stock: 150 U | P.V.P.: 774,50 € /50 U (VAT not included) | Term: 1/3 days | Ref. TRSNTFV12000350
SHOPStock: 150 U -
M. FIBERGLASS BRAID. SILICONE HOSE 70SH±5 TRANSP. SI-COATED RED Ø8 MM X 3,20 MM WALL ±0,3
| Stock: 600 U | P.V.P.: 557,46 € /50 U (VAT not included) | Term: 1/3 days | Ref. TRSNRFV08000320
SHOPStock: 600 U -
FIBERGLASS BRAID. SILICONE HOSE 70SH±5 TRANSP. SI-COATED RED Ø9,5MM X 3,20MM WALL ±0,3
| Stock: 400 U | P.V.P.: 671,11 € /50 U (VAT not included) | Term: 1/3 days | Ref. TRSNRFV09500320
SHOPStock: 400 U -
M. PES-MONO COAT. SILICONE HOSE 70SH ±5 TRANSPARENT SI-COATED RED Ø12MM X 3,5MM WALL (±0,3)
| On request | P.V.P.: 774,50 € /50 U (VAT not included) | Term: Request | Ref. TRSNRPM12000350
SHOPOn request -
M. FIBERGLASS BRAID. SILICONE HOSE 70SH±5 TRANSP. SI-COATED RED Ø12MM X 3,5MM WALL ±0,3
| Stock: 200 U | P.V.P.: 795,37 € /50 U (VAT not included) | Term: 1/3 days | Ref. TRSNRFV12000350
SHOPStock: 200 U -
M. FIBERGLASS BRAID. SILICONE HOSE 70SH±5 TRANSP. SI-COATED TRANSPARENT Ø15MM X 4,5MM WALL ±0,3
| Stock: 950 U | P.V.P.: 1.462,50 € /50 U (VAT not included) | Term: 1/3 days | Ref. TRSNTFV15000450
SHOPStock: 950 U -
M. FIBERGLASS BRAID. SILICONE HOSE 70SH±5 TRANSPARENT SI-COATED TRANSPARENT Ø19MM X 5,8MM WALL±0,3
| Stock: 175 U | P.V.P.: 946,25 € /25 U (VAT not included) | Term: 1/3 days | Ref. TRSNTFV19000580
SHOPStock: 175 U -
M. FIBERGLASS BRAID. SILICONE HOSE 70SH±5 TRANSP. SI-COATED RED Ø25MM X 6MM WALL ±0,3
| Stock: 50 U | P.V.P.: 1.495,25 € /25 U (VAT not included) | Term: 1/3 days | Ref. TRSNRFV25000600
SHOPStock: 50 U -
M. FIBERGLASS BRAID. SILICONE HOSE 70SH±5 TRANSPARENT SI-COATED TRANSPARENT Ø25MM X 6 MM WALL ±0,3
| Stock: 450 U | P.V.P.: 1.495,25 € /25 U (VAT not included) | Term: 1/3 days | Ref. TRSNTFV25000600
SHOPStock: 450 U -
M. FIBERGLASS BRAID. SILICONE HOSE 70SH±5 TRANSPARENT SI-COATED TRANSPARENT Ø32MM X 7 MM WALL ±0,3
| Stock: 20 U | P.V.P.: 864,30 € /10 U (VAT not included) | Term: 1/3 days | Ref. TRSNTFV32000700
SHOPStock: 20 U -
M. PES-MONO COAT. SILICONE HOSE 70SH ±5 TRANSPARENT SI-COATED TRANSPARENT Ø8MM X WALL 3,20MM ±0,3
| On request | P.V.P.: 543,00 € /50 U (VAT not included) | Term: Request | Ref. TRSNTPM08000320
SHOPOn request -
M. PES-MONO COAT. SILICONE HOSE 70SH ±5 TRANSPARENT SI-COATED TRANSPARENT Ø12MM X WALL 3,5MM ±0,3
| On request | P.V.P.: 774,50 € /50 U (VAT not included) | Term: Request | Ref. TRSNTPM12000350
SHOPOn request -
M. PES-MONO COAT. SILICONE HOSE 70SH ±5 TRANSPARENT SI-COATED TRANSPARENT Ø19MM X WALL 5,8MM ±0,3
| On request | P.V.P.: 1.892,50 € /50 U (VAT not included) | Term: Request | Ref. TRSNTPM19000580
SHOPOn request -
M. FIBERGLASS BRAID. SILICONE HOSE 70SH±5 TRANSP. SI-COATED TRANSPARENT Ø38MM X WALL 7MM ± 0,3
| Stock: 180 U | P.V.P.: 1.097,70 € /10 U (VAT not included) | Term: 1/3 days | Ref. TRSNTFV38000700
SHOPStock: 180 U -
M. FIBERGLASS BRAID. SILICONE HOSE 70SH±5 TRANSPARENT SI-COATED RED Ø15MM X 4,5MM WALL ±0,3
| Stock: 200 U | P.V.P.: 1.462,50 € /50 U (VAT not included) | Term: 1/3 days | Ref. TRSNRFV15000450
SHOPStock: 200 U -
M. FIBERGLASS BRAID. SILICONE HOSE 70SH±5 TRANSP. SI-COATED RED Ø19MM X 5,8MM WALL ±0,3
| Stock: 300 U | P.V.P.: 1.892,50 € /50 U (VAT not included) | Term: 1/3 days | Ref. TRSNRFV19000580
SHOPStock: 300 U
On request
If the product is not available, please indicate the features you need ...
