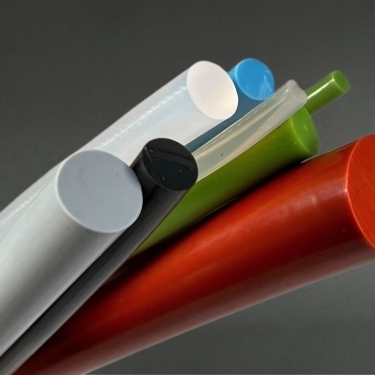

Silicone cords

Silicone Cords. In Merefsa manufacture silicone cords starting at 1mm up to 100mm diameter in several coil lengths .

Tubo de SIlicona

Product Information


Our standard in the manufacture of compact silicone cords, also known as silicone rhodons, is 65 Shore A in translucent color, although we can manufacture from 20 to 85 Shore A in any basic color and any RAL tailored from 25 Kg, as well as in luminescent, fluorescent or metallic colors.

Manguera de Silicona

Silicone Cords Extrusion


We manufacture silicone cords or silicone rims from 1mm to 100mm, in different roll lengths (25m, 50m, 100m, 250m and 500m ) depending on the needs of the client and we even carry out other measures and pieces cut from 1mm in length, upon request.

All this wide range of production allows us to offer the best service on the market, with a delivery time of less than two weeks all in all types of bases:

  • Standard insulating silicone (MVQ)
  • Conductive silicone
  • Steam silicone
  • Fluoro silicone (FVMQ)
  • Very high temperature silicone (THT)
  • Very low temperature silicone (PMVQ)
  • Silicone platinum cured
  • FDA compliant food contact silicone
  • BgVV (recommendation XV)
  • Medical grade silicone can comply with USP class VI
  • Very high temperatures spongy silicone
  • FDA compliant food conrtact Spongy silicone
Mangueras y tubos de silicona

Applications


The applications of silicone cords also called silicone rods are usually of sealing gaskets , for all types of industries, especially those of machinery manufacturers.

Consult our manufacturing possibilities for any welded silicone O-ring custom made from silicone cord / silicone knee. Any diameter (Ø1 to 100mm) can be manufactured, in the next table you can check the wide availability of silicone cords or silicone rims that we have in permanent stock, in order to improve our delivery time, service and customer satisfaction.

Online Stock Tables


Silicone cords or silicone rims 60 SH° (± 5) translucent most common in usual stock

(Taxes Not Included)

(Price valid for full rolls)
Do not hesitate to contact our sales department to request other diameters or different roll lengths.
Reference: Ø (mm) Weight (gr / m) Color Roll length (m) Roll weight (Kg) (€/m) Stock Online (m)
CSTR600200 Ø 2 mm 4 gr / m Translucent 0.400 Kg
CSTR600250 Ø 2,5 mm 6.25 gr / m Translucent 0.625 Kg
CSTR600300 Ø 3 mm 9 gr / m Translucent 0.900 Kg
CSTR600400 Ø 4 mm 16 gr/m Translucent 1,600 Kg
CSTR600500 Ø 5 mm 25 gr / m Translucent 2,500 Kg
CSTR600600 Ø 6 mm 36 gr / m Translucent 3,600 Kg
CSTR600700 Ø 7 mm 49 gr / m Translucent 4,900 Kg
CSTR600800 Ø 8 mm 64 gr / m Translucent 6,400 Kg
CSTR600900 Ø 9 mm 81 gr/m Translucent 4,050 Kg
CSTR601000 Ø 10 mm 100 gr/m Translucent 4,050 Kg
CSTR601100 Ø 11 mm 121 gr / m Translucent 3,000 Kg
CSTR601200 Ø 12 mm 144 gr / m Translucent 3,600 Kg
CSTR601400 Ø 14 mm 196 gr / m Translucent 4,900 Kg
CSTR601500 Ø 15 mm 225 gr / m Translucent 5.625 Kg
CSTR601800 Ø 18 mm 324 gr / m Translucent 8,100 Kg
CSTR602000 Ø 20 mm 400 gr / m Translucent 10,000 Kg

Images


Cordones de Silicona

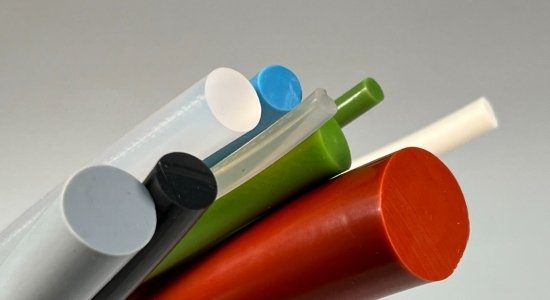

Silicone cords
Cordones de Silicona

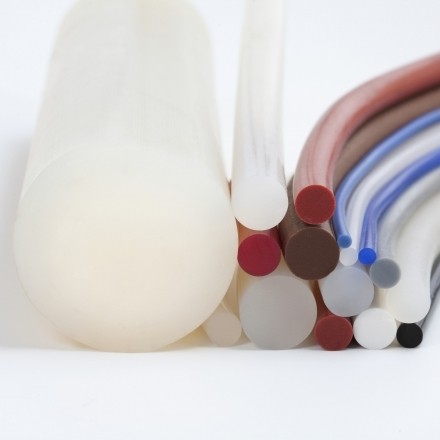

Silicone cords
Cordones de Silicona
Silicone cords
Cordones de Silicona
Silicone cords
Cordones de Silicona
Silicone cords
